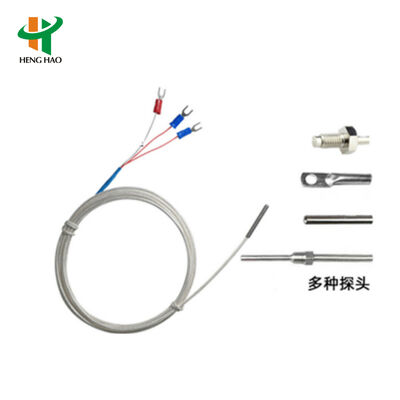

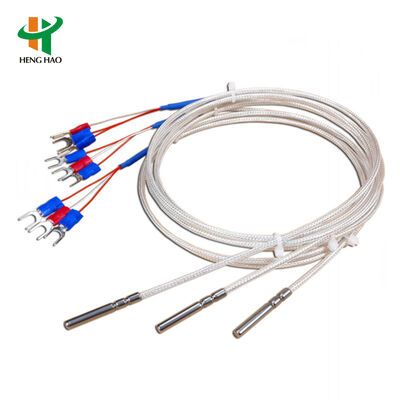

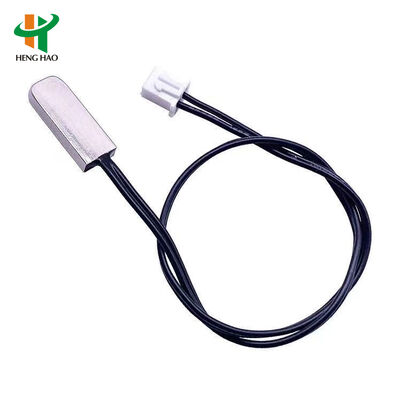

PT100 Temperature Sensor TP1000 Thermistor NTC Platinum Resistor
NTC Temperature Sensor Specifications
| Specification Name |
Scope |
Detection Condition |
| R25 (nominal resistance value) |
5K, 8K, 10K, 15K to 100K |
Constant temperature 25ºC±0.05ºC |
| R25 Permissible variance(%) |
±1, ±2, ±3, ±5, ±10 |
Constant temperature 25ºC±0.05ºC |
| B25/50 or B25/85 (material coefficient) |
2500~5000K |
Constant temperature 25ºC±0.05ºC
Constant temperature 85ºC±0.05ºC |
| B25/50 Value permissible variance(%) |
±1, ±2 |
Constant temperature 25ºC±0.05ºC
Constant temperature 50ºC±0.05ºC |
| ∫ (dissipation coefficient) |
≥0.8mw/ºC |
Static in the air |
| T (thermal time constant) |
≤25S |
Static in the air |
| Ta (Working temperature) |
-40ºC~+250ºC |
|
| Pn (rated power) |
50mw |
Within working temperature |
Configuration Options

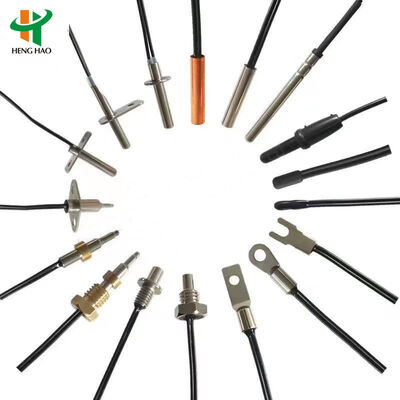

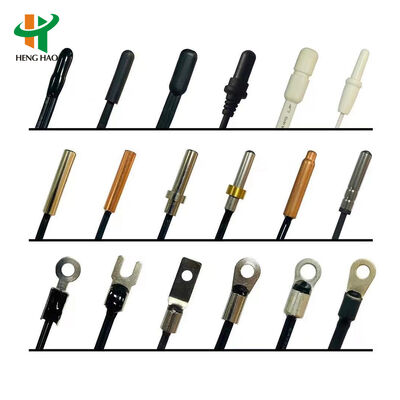

- Case and head: Fork head, O ring head, drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing
- Lead wire: #24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client's request
- Terminal: Can be riveted according to the requirements of various terminals
Our Services
- Your inquiry will be replied within 12 hours
- Well-trained and experienced staff are always at your service
- Unique design products and many private mold product are waiting for your choice
- Strictly protect your private information and your ideas of design
Frequently Asked Questions
Q1. Can I have a sample order for SENSOR?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks based on the amount of your order.
Q3. Do you have any MOQ limit for led waterproof string order?
A: At least 1 for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
KSD301 Difference of Auto Reset Type and Manual Reset Type
Manual reset type: Temperature sensing components consist of bimetallic strip. When the temperature reached the action temperature range, it will jump quickly and the movable disc disconnects. When the temperature declines to a fixed temperature point, the contact point cannot reset until reconnecting the circuit by pushing the reset button.
Note: This type of manual reset thermostat can reset when the temperature declines 20°C after snap action by pressing the reset button. And 4~6 N will be advisable; please don't use too much strength. To ensure the normal function, the distance between the reset button and the close cover should not be less than 20.4mm.
Auto reset type: Temperature sensing components consist of bimetallic strip. When the temperature reached the action temperature range, it will jump quickly and the movable disc disconnects. When the temperature declines to a fixed temperature point, the contact point can auto reset and start working.

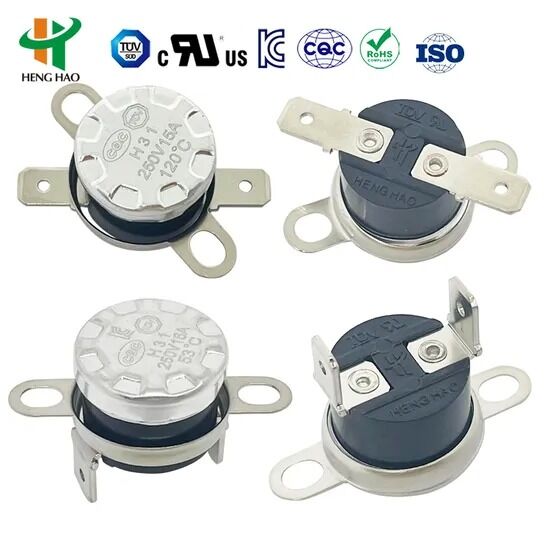

KSD301 Bimetal Thermostat Applications
Used as temperature control for household electric appliances and widely applied in:
- Coffee pots
- Automatic toasters
- Laminators
- Electric water pots
- Steam guns
- Steam irons
- Wind warmers
- Microwave ovens
- Water dispensers
Temperature Specifications
| Open temp. |
Reset temp. |
Open temp. |
Reset temp. |
Open temp. |
Reset temp. |
| -20ºC±5ºC |
5ºC±5ºC |
95ºC±5ºC |
80ºC±5ºC |
205ºC±5ºC |
175ºC±10ºC |
| -15ºC±5ºC |
5ºC±5ºC |
100ºC±5ºC |
80ºC±10ºC |
210ºC±5ºC |
180ºC±10ºC |
| -10ºC±5ºC |
5ºC±5ºC |
105ºC±5ºC |
85ºC±10ºC |
215ºC±5ºC |
185ºC±10ºC |
| 0ºC±5ºC |
-10ºC±5ºC |
110ºC±5ºC |
90ºC±10ºC |
220ºC±5ºC |
190ºC±10ºC |
| 5ºC±5C |
-5ºC±5ºC |
115ºC±5ºC |
95ºC±10ºC |
225ºC±5ºC |
195ºC±10ºC |
| 10ºC±5ºC |
0ºC±5ºC |
120ºC±5ºC |
100ºC±10ºC |
230ºC±5ºC |
200ºC±10ºC |
| 15ºC±5ºC |
5ºC±5ºC |
125ºC±5ºC |
105ºC±10ºC |
235ºC±5ºC |
205ºC±10ºC |
| 20ºC±5ºC |
5ºC±5ºC |
130ºC±5ºC |
110ºC±10ºC |
240ºC±5ºC |
210ºC±10ºC |
| 25ºC±5ºC |
10ºC±5ºC |
135ºC±5ºC |
115ºC±10ºC |
245ºC±5ºC |
215ºC±10ºC |
| 30ºC±5ºC |
15ºC±5ºC |
140ºC±5ºC |
120ºC±10ºC |
250ºC±5ºC |
220ºC±10ºC |
Or according to client's request
